TFR Roll Over Stand Technology – Heavy Equipment Positioning Systems for Industrial Motor Rotation Operations

Industrial facilities handling massive electrical equipment require specialized positioning systems that can safely control heavy loads during maintenance and inspection procedures. Professional roll over stand technology represents the pinnacle of heavy equipment positioning engineering, providing precise control for rotating multi-ton assemblies.

Manufacturing operations across heavy industry face critical challenges when positioning large electrical equipment for maintenance access. CAM Innovation’s TFR Roll Over Stand systems deliver engineered solutions for safe, controlled rotation of massive equipment assemblies, enabling comprehensive maintenance access while protecting both personnel and valuable industrial machinery.

Understanding Roll Over Stand Technology in Heavy Equipment Operations

Roll over stand technology encompasses sophisticated positioning systems engineered to rotate large industrial equipment assemblies weighing thousands of pounds. These precision-built systems enable technicians to access every component surface during comprehensive maintenance procedures.

The technology integrates advanced load-bearing structures with precision rotation mechanisms that maintain complete control throughout positioning operations. Modern stands incorporate multiple safety systems and digital controls that provide operators with precise positioning capabilities.

Heavy equipment positioning demands go far beyond simple rotation. The system must maintain structural integrity under massive loads while providing smooth, controlled movement that protects both the equipment being serviced and the technicians performing maintenance work.

TFR Roll Over Stand Engineering and Structural Design

Advanced Load Distribution Systems

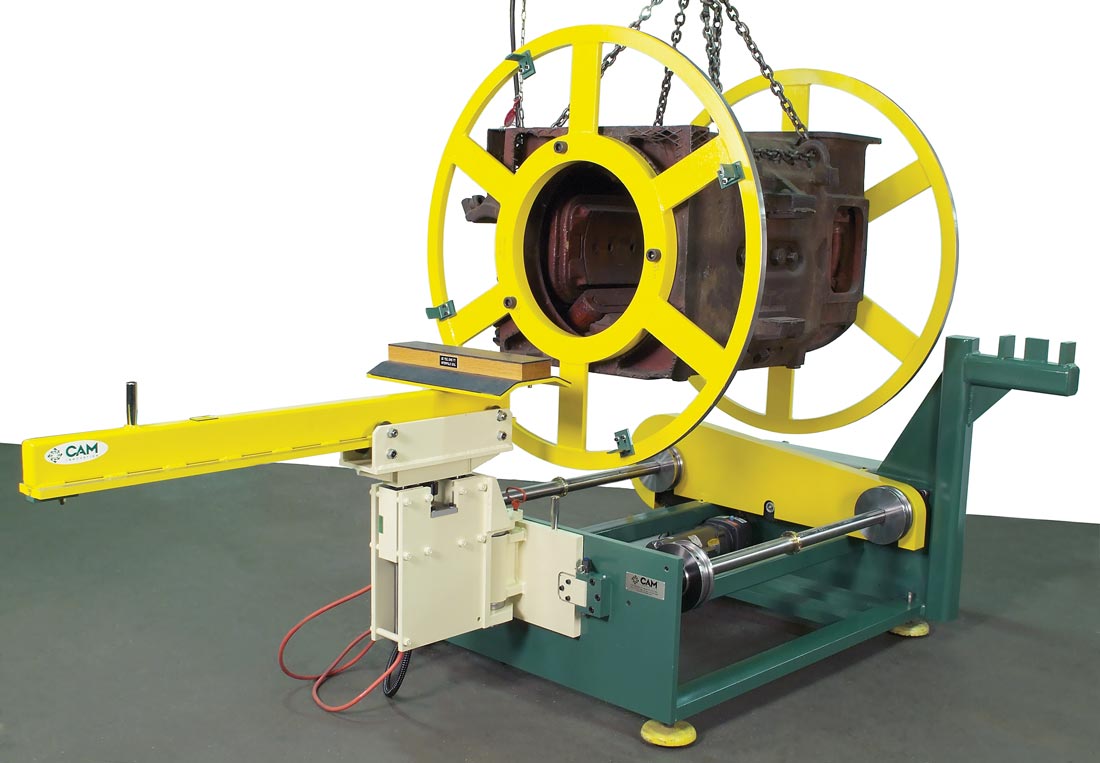

TFR roll over stand technology utilizes engineered structural frameworks designed to handle extreme loads while maintaining dimensional stability. The frame construction employs strategic load paths that distribute forces evenly across the entire support structure.

Engineering calculations account for both static loads and dynamic forces generated during rotation cycles. The structural design prevents stress concentrations that could compromise system integrity or create safety hazards during operation.

Quality stands incorporate reinforced mounting interfaces that provide positive connection with equipment assemblies. These mounting systems must accommodate various equipment configurations while maintaining secure attachment throughout the rotation range.

Precision Rotation Mechanisms

The rotation system represents the core technology that enables controlled positioning of heavy equipment assemblies. TFR stands utilize gear reduction systems that provide smooth, precise movement without sudden jerks or inconsistent speeds.

Bearing systems must handle both radial and thrust loads generated by equipment assemblies in various orientational positions. Quality bearings provide long service life under demanding operational conditions while maintaining smooth rotation characteristics.

Control systems allow operators to adjust rotation speed based on specific positioning requirements. Variable speed capability provides slow, precise movement for critical positioning and faster rates for general repositioning operations.

Integrated Safety Technology

Modern TFR roll over stands incorporate comprehensive safety systems that protect operators and equipment during positioning operations. Emergency stop controls provide immediate shutdown capability from multiple locations around the positioning system.

Proximity detection technology monitors operator position and automatically adjusts system operation to maintain safe working conditions. These systems provide continuous protection beyond traditional safety barriers and operational procedures.

Positive locking mechanisms secure equipment assemblies at any desired rotational position, preventing unexpected movement during maintenance procedures. The locking system must engage reliably and provide clear visual indication of its operational status.

Heavy Equipment Positioning Applications Across Industries

Power Generation and Electrical Utilities

Electrical generation facilities rely on TFR roll over stand technology for positioning massive generator rotors and turbine assemblies during scheduled maintenance procedures. These applications often involve equipment weighing 30,000 to 100,000 pounds requiring precise positioning control.

Maintenance windows in power generation represent extremely valuable time periods where every hour of downtime impacts revenue generation. Positioning systems that reduce maintenance duration directly contribute to facility profitability and electrical grid reliability.

Utility applications often require stands capable of handling multiple equipment types within the same facility. Configurable mounting systems provide flexibility while maintaining the precision required for critical power generation equipment maintenance.

Heavy Manufacturing and Processing Operations

Steel production facilities, aluminum smelters, and chemical processing plants depend on large electrical equipment for production machinery including rolling mills, processing equipment, and material handling systems. Regular maintenance requires complete access to all equipment surfaces.

Production scheduling constraints make efficient positioning critical for manufacturing operations. Roll over stand technology that enables rapid equipment positioning directly impacts facility productivity during planned maintenance outages.

The demanding environment in heavy manufacturing requires positioning systems designed for continuous operation under challenging conditions including temperature variations, contamination, and frequent usage cycles.

Armature winding rotation stands provide complementary positioning capabilities for specialized maintenance procedures that require different equipment configurations.

Mining and Resource Extraction Operations

Mining operations utilize massive electrical equipment for conveyor systems, processing machinery, and extraction equipment. These installations often operate in remote locations where maintenance efficiency becomes critical for operational success.

Equipment failures in mining operations can halt production worth millions of dollars daily. Roll over stand technology that enables thorough maintenance procedures helps prevent unexpected failures and extends valuable equipment operational life.

Remote mining applications may require portable positioning systems that can be transported to equipment locations rather than moving heavy assemblies to central maintenance facilities. This capability reduces both maintenance time and transportation costs.

Selection Parameters for Heavy Equipment Positioning Systems

Load Capacity Engineering Analysis

Determining correct positioning system capacity requires comprehensive engineering analysis of the heaviest equipment assemblies the facility expects to handle. The system must accommodate current equipment plus provide capacity for future additions or equipment upgrades.

Physical dimensions including equipment length, diameter, and mounting configurations influence positioning system specifications. The system must provide adequate clearance for equipment components while maintaining stable support throughout the complete rotation range.

Weight distribution changes as equipment moves through different rotational positions. The positioning system design must account for these variations and maintain stability throughout the complete operational cycle under all loading conditions.

Facility Infrastructure Integration Requirements

New TFR roll over stand systems must integrate seamlessly with existing facility infrastructure including overhead crane systems, electrical distribution, and available floor space. Compatibility planning prevents costly facility modifications after equipment delivery.

Foundation engineering requirements vary significantly with system capacity and configuration. Proper foundation design provides stable operation and prevents vibration that could affect positioning precision or create safety concerns during operation.

Utility connections including electrical power, compressed air, and hydraulic systems require careful planning during facility design phases. Adequate utility capacity and proper routing prevent operational limitations and performance restrictions.

Operational Workflow Optimization

Positioning system configuration should support efficient maintenance workflow patterns within the facility. Equipment placement relative to other maintenance tools affects material handling efficiency and overall productivity during maintenance procedures.

Quick-change mounting capabilities reduce setup time when handling multiple equipment types. Features like adjustable mounting systems and preset positioning configurations significantly improve throughput in high-volume maintenance facilities.

Integration with maintenance documentation and tracking systems helps maintain comprehensive maintenance records and supports predictive maintenance programs. These capabilities become increasingly important as facilities adopt digital maintenance strategies.

Safety Engineering and Regulatory Compliance Standards

Heavy Equipment Positioning Safety Requirements

Industrial facilities must comply with comprehensive safety standards for heavy equipment handling and positioning operations. TFR roll over stand technology plays a critical role in meeting these requirements by providing engineered solutions for safe equipment manipulation.

Proper operator training, documented safety procedures, and equipment certification represent required elements of regulatory compliance. Positioning systems should incorporate safety features as integral design elements rather than aftermarket additions.

Regular inspection and maintenance of safety systems maintains compliance and protects personnel throughout the equipment operational life. Documentation of these procedures provides evidence of facility commitment to worker protection and regulatory adherence.

Industry-Specific Safety Standards

Different industrial sectors often have additional safety requirements beyond basic regulatory standards. Chemical processing, nuclear facilities, and defense contractors may require enhanced safety features and comprehensive documentation.

Quality certifications and third-party testing may be required for specific applications. Selecting positioning systems that meet these requirements initially avoids costly modifications and delays during installation and commissioning.

Environmental considerations including explosion-proof construction or enhanced corrosion resistance may be required in specific industrial applications. These factors should be evaluated during system selection to ensure proper equipment specification.

Economic Analysis and Investment Justification

Productivity Enhancement Metrics

Quality TFR roll over stand technology directly impacts maintenance productivity by providing safe, efficient access to equipment assemblies. Reduced setup time and improved positioning capabilities enable more efficient maintenance procedures and shorter outage durations.

Time savings from proper positioning equipment can be substantial when calculated across multiple maintenance events annually. These efficiency improvements often justify equipment investment through reduced labor costs and shorter maintenance windows.

Improved maintenance quality resulting from better equipment access and positioning reduces the likelihood of premature equipment failures and repeat maintenance requirements. This reliability improvement contributes significantly to overall operational profitability.

Risk Mitigation and Safety Cost Analysis

Investing in engineered positioning equipment significantly reduces workplace injury risks and associated costs. Workers’ compensation claims, lost time incidents, and replacement training represent substantial hidden costs of inadequate positioning equipment.

Insurance providers often recognize safety investments through reduced premiums or improved loss experience ratings. These savings can offset positioning equipment costs over the useful operational life of the system.

Preventing catastrophic equipment damage during handling procedures protects investments often worth millions of dollars. The cost of replacing damaged equipment far exceeds the investment in proper positioning technology.

Long-Term Operational Cost Considerations

Quality TFR roll over stand systems typically demonstrate lower operating costs due to superior reliability and reduced maintenance requirements. Initial investment in quality positioning equipment pays dividends through reduced ongoing operational expenses.

Energy consumption, replacement parts availability, and technical service support all impact long-term operational costs. Evaluating these factors during system selection prevents unexpected expenses throughout the equipment operational life.

Facility flexibility provided by quality positioning equipment allows handling of different equipment types without additional positioning system investments. This adaptability protects investment value as facility requirements evolve over time.

Advanced Technology Integration in Modern Positioning Systems

Digital Control System Integration

Modern TFR roll over stand technology incorporates sophisticated digital control systems that provide precise positioning and comprehensive operational monitoring. These systems can store preset configurations for different equipment types, reducing setup time and improving operational consistency.

Data logging capabilities track usage patterns, maintenance requirements, and operational parameters throughout the system lifecycle. This information supports predictive maintenance programs and helps optimize equipment utilization across industrial facilities.

Remote monitoring capabilities enable supervision of positioning operations from control rooms or mobile devices. This connectivity supports lean maintenance initiatives and provides real-time visibility into maintenance operations facility-wide.

Advanced Safety System Technology

New safety technologies include advanced proximity detection systems, automated safety interlocks, and integrated emergency response capabilities. These features provide enhanced operator protection while maintaining operational efficiency and productivity.

Vision systems can continuously monitor operator position and automatically adjust equipment operation to maintain safe working conditions. These systems provide continuous protection beyond traditional safety barriers and operational procedures.

Emergency response integration can automatically alert supervisors and emergency personnel in case of operational incidents. This rapid response capability minimizes the potential for serious injuries and equipment damage during positioning operations.

CAM Innovation universal machines integrate seamlessly with positioning systems to provide comprehensive maintenance capabilities for industrial facilities.

Predictive Maintenance Integration

Smart sensor technology monitors critical positioning system components including bearings, hydraulic systems, and structural elements for signs of wear or developing operational problems. This monitoring enables proactive maintenance that prevents unexpected system failures.

Trend analysis of operational data helps predict maintenance requirements and optimize maintenance schedules for positioning equipment. This capability reduces both planned and unplanned downtime while extending overall system operational life.

Integration with facility maintenance management systems provides automated work order generation and maintenance scheduling capabilities. This connectivity streamlines maintenance operations and improves overall facility maintenance efficiency.

Installation Engineering and Commissioning Procedures

Site Preparation and Infrastructure Requirements

Proper site preparation represents a critical factor for successful TFR roll over stand installation. Foundation requirements must be verified through comprehensive soil analysis and structural engineering calculations to provide adequate long-term support.

Utility installations including electrical power, compressed air, and hydraulic connections must be completed before positioning equipment delivery. Coordination with utility contractors prevents delays during system commissioning procedures.

Safety system installations including emergency stops, operational lighting, and ventilation systems must be completed and tested before positioning equipment operation. These systems are integral to safe operation and regulatory compliance.

Equipment Testing and Performance Validation

Comprehensive testing procedures verify that installed positioning equipment meets performance specifications and safety requirements. Load testing confirms capacity ratings and structural integrity under operational conditions.

Safety system testing validates emergency stops, proximity sensors, and interlock systems operate correctly under all anticipated conditions. This testing must be thoroughly documented to demonstrate regulatory compliance.

Operator training should be completed during commissioning procedures to ensure personnel understand proper operation and safety procedures. This training provides the foundation for safe, efficient positioning equipment operation.

Performance Optimization and Fine-Tuning

Initial operation should include performance optimization to achieve maximum efficiency and safety performance. This process may involve adjusting control parameters, fine-tuning safety systems, and optimizing operational procedures.

Documentation of optimized settings provides baseline information for future maintenance and troubleshooting procedures. This documentation becomes valuable reference material for ongoing positioning system operations.

Regular performance reviews during the first operational year help identify optimization opportunities and verify equipment performs as expected under actual facility operating conditions.

Maintenance Engineering and Service Support Programs

Preventive Maintenance Program Development

Effective preventive maintenance programs extend positioning equipment operational life and maintain safety performance throughout the system lifecycle. These programs should be developed in cooperation with equipment manufacturers to provide proper maintenance procedures.

Critical components including bearings, hydraulic systems, and safety devices require regular inspection and maintenance according to manufacturer specifications. Documentation of these procedures provides evidence of proper equipment care and regulatory compliance.

Replacement parts inventory should be established during commissioning to provide rapid response to maintenance requirements. Critical components should be stocked locally to minimize positioning system downtime during repair procedures.

Technical Support and Personnel Training

Ongoing technical support from positioning equipment manufacturers helps resolve operational issues and optimize performance over the equipment lifecycle. This support relationship is particularly important for complex positioning technology.

Advanced training programs for maintenance personnel provide proper troubleshooting and repair procedures for positioning systems. This training prevents costly mistakes and maintains equipment reliability throughout its operational life.

Access to technical documentation, spare parts information, and service bulletins keeps facility personnel informed about positioning equipment updates and maintenance requirements.

Quality Assurance and Performance Monitoring Programs

Operational Performance Measurement

Key performance indicators for TFR roll over stand technology include positioning accuracy, operational cycle time, safety system response, and equipment availability. Regular monitoring of these metrics helps identify optimization opportunities.

Trend analysis of performance data can predict maintenance requirements and help optimize operational procedures for positioning equipment. This proactive approach minimizes unexpected downtime and extends equipment operational life.

Benchmarking against industry performance standards provides context for performance evaluation and helps identify areas for improvement in facility positioning operations.

Safety Performance Tracking Systems

Safety performance metrics including incident rates, near-miss reporting, and safety system activations provide important feedback on positioning equipment and procedural effectiveness.

Regular safety audits verify that positioning equipment continues to meet safety standards and regulatory requirements throughout its operational life. These audits may identify opportunities for safety performance improvements.

Documentation of safety performance provides evidence of facility commitment to worker protection and regulatory compliance during inspections and regulatory audits.

Future Technology Developments and Industry Trends

Automation Integration Advances

Future TFR roll over stand technology will likely incorporate increased automation including robotic loading systems and automated positioning controls. These advances will further improve productivity while enhancing safety performance in industrial facilities.

Integration with manufacturing execution systems will provide real-time tracking of maintenance operations and positioning equipment utilization. This connectivity supports Industry 4.0 initiatives in industrial maintenance operations.

Artificial intelligence applications may optimize positioning procedures and predict maintenance requirements based on operational patterns and equipment condition monitoring data collected over time.

Sustainability and Environmental Engineering

Energy efficiency improvements in hydraulic and electrical systems will reduce operational costs and environmental impact. These advances align with corporate sustainability initiatives and increasingly strict environmental regulations.

Design for recyclability and sustainable materials will become increasingly important as industrial facilities focus on environmental stewardship and lifecycle cost management for positioning equipment.

Noise reduction technologies will improve working conditions and help facilities meet increasingly strict environmental regulations regarding workplace noise levels in industrial environments.

Schedule a Free Consultation Today to discuss your specific TFR roll over stand technology requirements and learn how CAM Innovation’s precision positioning systems can improve safety and efficiency in your heavy equipment maintenance operations.

Industry Standards and Compliance Resources

Professional heavy equipment positioning operations must adhere to established industry standards and safety guidelines for industrial machinery handling. The Occupational Safety and Health Administration (OSHA) provides comprehensive workplace safety standards that apply to industrial facilities, including specific requirements for heavy equipment positioning safety features, operator protection protocols, and machinery operation procedures.

The American Society of Mechanical Engineers (ASME) develops technical standards for mechanical equipment design and operation, including guidelines for heavy-duty positioning equipment and safety systems that help industrial facilities ensure their TFR roll over stand technology meets industry best practices for reliability and operator protection.

Frequently Asked Questions

What load capacity specifications should I consider for TFR roll over stand technology in my facility? Load capacity should exceed your heaviest equipment assembly by at least 30% to provide adequate safety margin and accommodate future equipment additions. Most industrial facilities require positioning systems capable of handling 15,000 to 75,000 pounds, though specialized applications may require higher capacities. Consider both equipment weight and any additional tooling or fixtures that will be supported during positioning procedures. Work with positioning equipment specialists to analyze your specific requirements and ensure proper capacity selection for long-term facility needs.

How do I determine the correct positioning system configuration for my equipment types and facility constraints? Start by documenting all equipment assemblies you currently handle, including physical dimensions, mounting configurations, and maintenance access requirements. Consider both current and anticipated future requirements to avoid early system obsolescence. Evaluate your facility layout including overhead crane coverage, available floor space, and maintenance workflow patterns. Many manufacturers offer modular positioning systems that can be configured for multiple equipment types while fitting specific facility constraints and operational requirements.

What safety features are most critical when selecting TFR roll over stand technology? Prioritize emergency stop systems accessible from multiple locations around the positioning equipment, positive locking mechanisms that prevent unexpected rotation, and proximity sensors that detect operator presence near moving components. Variable speed rotation control provides safer operation than fixed speed systems. Comprehensive guards must protect operators from pinch points while maintaining access for maintenance procedures. Advanced facilities benefit from vision systems that monitor operator position and automatically adjust equipment operation to maintain safe working conditions throughout positioning operations.

Can TFR roll over stand systems be integrated with existing facility infrastructure and overhead crane systems? Most quality positioning systems are engineered for facility integration, but coordination during planning phases is critical for success. Verify that overhead crane capacity, reach, and hook height are adequate for your positioning system configuration and largest equipment assemblies. Consider utility requirements including electrical power, compressed air, and hydraulic connections for optimal system performance. Foundation requirements must be evaluated through comprehensive engineering analysis to provide adequate long-term support for positioning operations.

What maintenance procedures are required to keep TFR roll over stand technology operating safely and reliably? Regular maintenance includes hydraulic system inspection and fluid changes according to manufacturer schedules, typically every 1000-2000 operating hours depending on usage intensity. Inspect structural components and bearing systems monthly for signs of wear, damage, or operational degradation. Test safety systems including emergency stops, proximity sensors, and locking mechanisms weekly to verify proper operation and regulatory compliance. Lubricate mechanical components according to manufacturer specifications and document all maintenance activities to track performance trends and support predictive maintenance programs.
